Second-hand

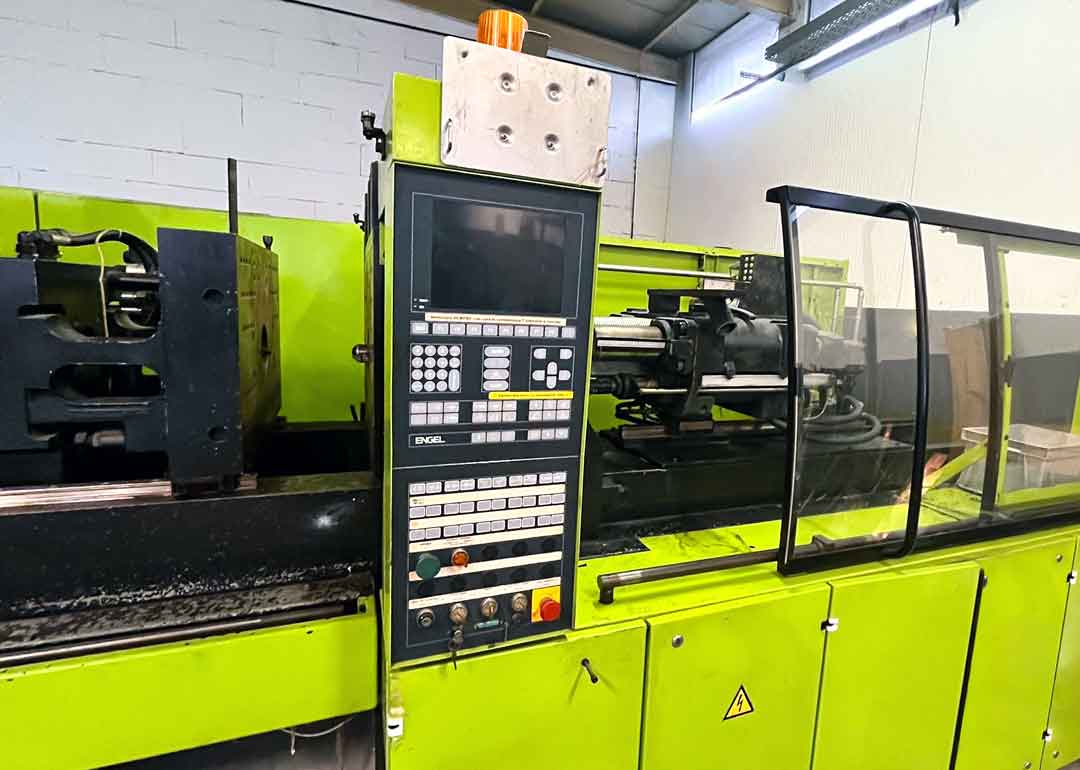

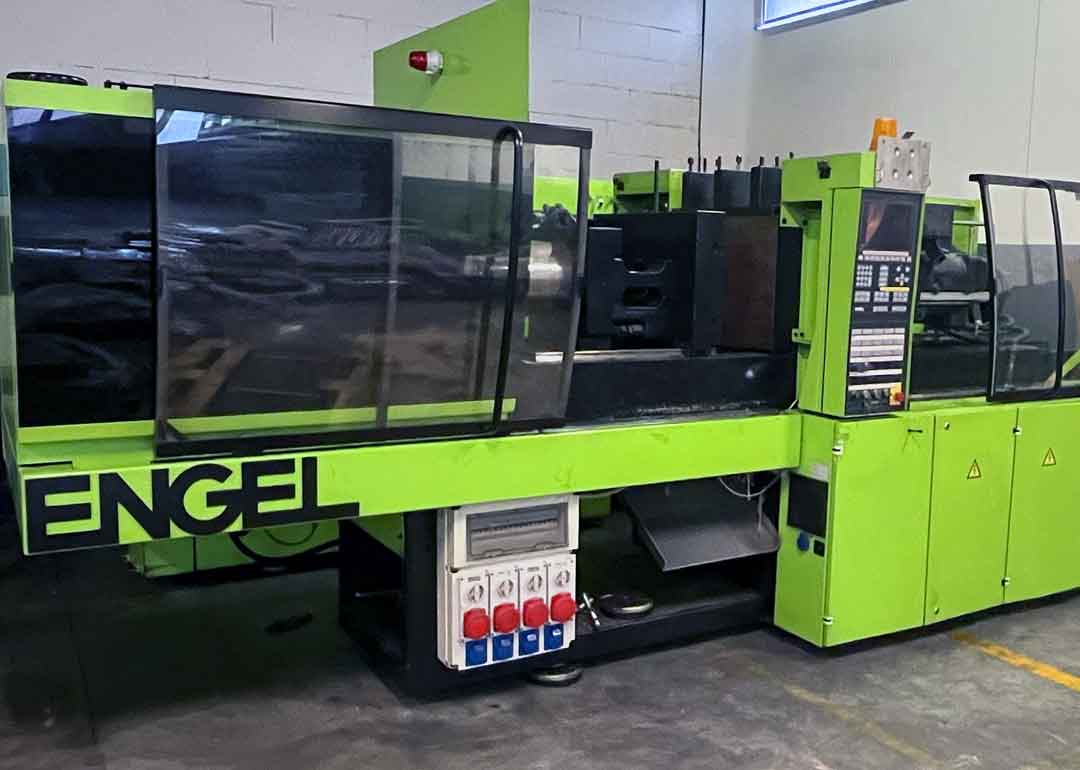

ENGEL ES 500 - 120 HL
The ENGEL ES 500 – 120 HL is a reliable and versatile injection moulding machine, ideal for the production of high-quality plastic components. It guarantees high precision, energy efficiency and a long service life, ensuring consistent results even in intensive production.
| Description | Value |
|---|---|
| Type | Injection Moulding |
| Manufacturer | ENGEL |
| Model | ES 500 / 120 HL |
| Machine No. | 29651 |
| Year | 1996 |
| Certificate | 96232 |
| Condition | Excellent |
| Functionality | Fully |
| Machine Manual | Available |
| Language | Italian |
| Operating Hours | 51241 |
| Location | Erba (CO) - Italy |
| Description | Value |
| Screw Diameter | 45 mm |
| Dosage Stroke | 200 mm |
| Screw Speed | 320 min⁻¹ |
| Plasticizing Load | 38 g/sec |
| Injection Load | 251 cm³/sec |
| Shot Volume | 318 cm³ |
| Max Inject. Weight | 240 g |
| Injection Pressure | 1000 bar |
| Heating Zones | 5 |
| Clamping Force | 1200 kN |
| Opening Stroke | 500 mm |
| Extraction Force | 40 kN |
| Extraction Stroke | 130 mm |
| Maximum Platen Distance | 750 mm |
| Installation Height | 250 mm |
| Platen Size | 730 x 500 mm |
| Machine Dimensions | 5 m x 1.20 m x 1.85 m |
| Machine Weight | 6400 Kg |
| PRICE 12.000,00 € | |
